Dimensions and clear dimension

Max. dimensions: W x H 1200 x 3000 mm per leaf, i.a. a maximum width of 12 m and 2–10 door leaf for corner version.

· Weight: max. 150 kg per door leaf.

Glass thickness: 9–59 mm.

Contact us for more information

Drawing texts

The texts are intended to help the specifiers to define which systems, fittings, glazing units, surface treatment alternatives and functions are required. They are later used by the licensed fabricators during the production of the finished products.

Download the text as .dwg
Download the text as .pdf

Fittings

• Completely flush appearance in closed position Plant and clean appearance in closed position
• Concealed drainage to give a uniform overall appearance, even when open
• Upper steering brackets and lower wheel brackets are covered to give a uniform overall appearance
• Exclusively designed, ultra-flat handle and key
• Great creative freedom thanks to the large range of configurations
• Locking cylinder RC2 according DIN EN 1303
• 4 or 5-point multipoint locking RC2

Threshold options

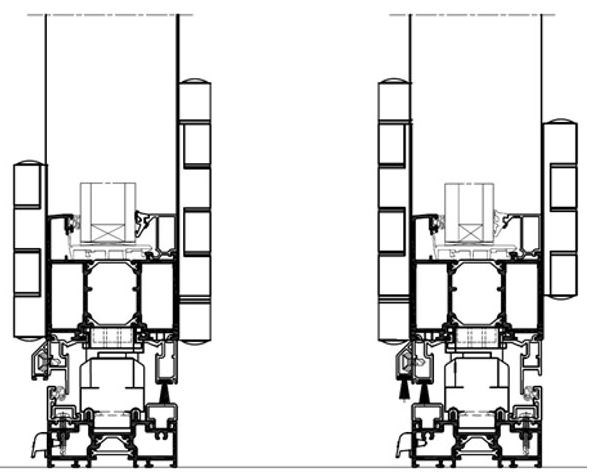

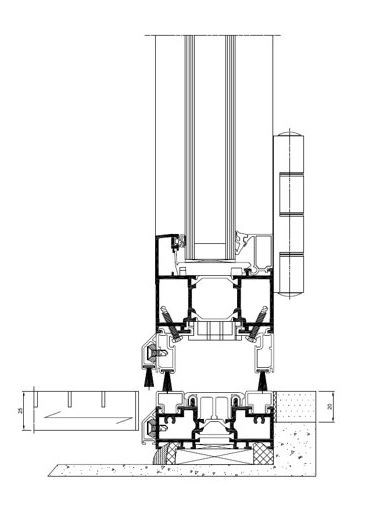

Threshold alternatives and principle details

Inward                                                                   Outward

Flush threshold solution

Internal test in line with EN 14351-1​

Water tightness: 100 Pa (3A)​

Air tightness:    Class 3​

U-value

Handles

Handels for Ambial are avalible in colour black RAL 9005, grey RAL 9006 and white RAL 9010.

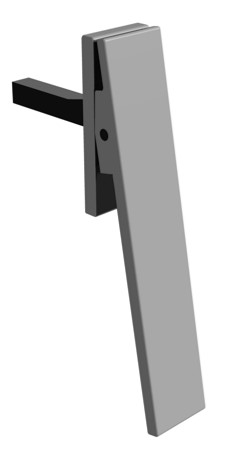

• TPW6009 - flat handle

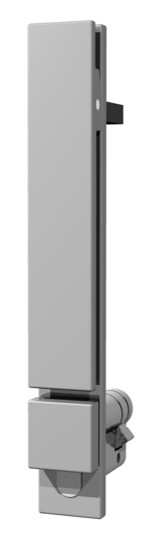

• TPW6002 - flat lockable handle

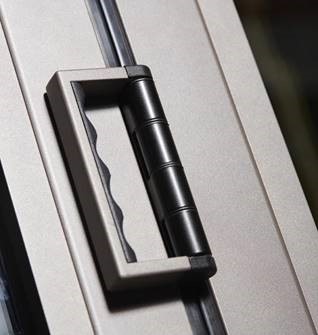

• TPW6006 - pull handle

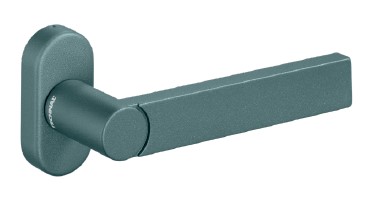

• SCZ61025 - Exterior handle

• SCZ61027 - Handel for primary door leaf, double
