Roof Glazing

SAPA 5050

Roof Glazing

Roof and slooped glazing with freedom of design


SAPA 5050 roof glazing system consists of 50 mm wide insulated aluminium profiles. The system has a longitudinal insulating strip which provides good insulation and support for the glass holders. The horizontal, vertical and dividing profiles come in different depths. Rebate for single glass or for double and triple glazing units.

The 5050 system makes it possible to give the roof virtually any form. Glazed roofs can have large spans without compromising the static stability.

SAPA 5050 roof glazing is also available in an uninsulated version with a single glass rebate.


Product benefits


  • Inclination. Recommended at least 15°
  • Roof lights for comfort ventilation and smoke evacuation


  • Insulated or uninsulated profiles
  • Profile width. 50 mm
  • Profile depth. Vertical: 60-180 mm, horizontal: 25-138 mm


  • Vertical dividing profiles. Width 50 mm
  • External glass holders. 7 mm for stability and good water runoff

More information

Specifications & EPD

Ventilation roof lights

For ventilation roof lights are combined with smoke evacuation function. For the best results, the roof lights should be located as high as possible in the glazed roof. The number of opening units should be calculated for both comfort and smoke ventilation. For adjustment, the roof lights should be equipped with automatic devices and motorised drive.

Ventilation / smoke hatch SAPA 5050 Roof Vent is developpted for fully integration in Sapa glass roofs / facades. The hatch is well integrated into the facade profiles and lies more flat than previous products. The ventilation hatch is certified for smoke ventilation and optimal for projects with fire safety requirements. The hatch has a good insulation value with the possibility of using tripple glas units.


Glazed roofs shall be designed to prevent accidents resulting from fall or stepping through. Normally, toughened glass is used as the outside layer and laminated glass as the inside layer. Applicable standards and requirements should be taken into account.

44-51 mm tripple glazing units
24-35 mm double glazing units
6-11 mm single glazing

G= Glass rebate

Elevations And Details

A5050-1006 110111213141516171819233132333435363738456789
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1007 11011131516172331323334353637384567
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1003 101323331323334
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1009 10111314202122331343537385789
Save this elevation as: dwg / dxf
Click on number to view the details

Projects using roof glazing SAPA 5050

Lindesberg Hälsocenter


Architect: White Architects
Metal builder: Glaslindberg Facade
Products: Facade SAPA: 4150, Roof: SAPA 5050, Doors SAPA 2086 & SAPA 2050
Photo: Åke E:son Lindman &White

Eagle view, Parveke, Finland


Building: Hotell Iso-Sy.te
Location: Syöte, Finland
Building year: 2014
Architect: Harri Lindroos, arkitekt safa ARKTON Suunnitteluryhm. Oy
Fabricator: Alutec Oy

Facades: Sapa Facade 4150
Roof Glazing: Sapa Roof Glazing 5050

Photography: Tiina Törmänen

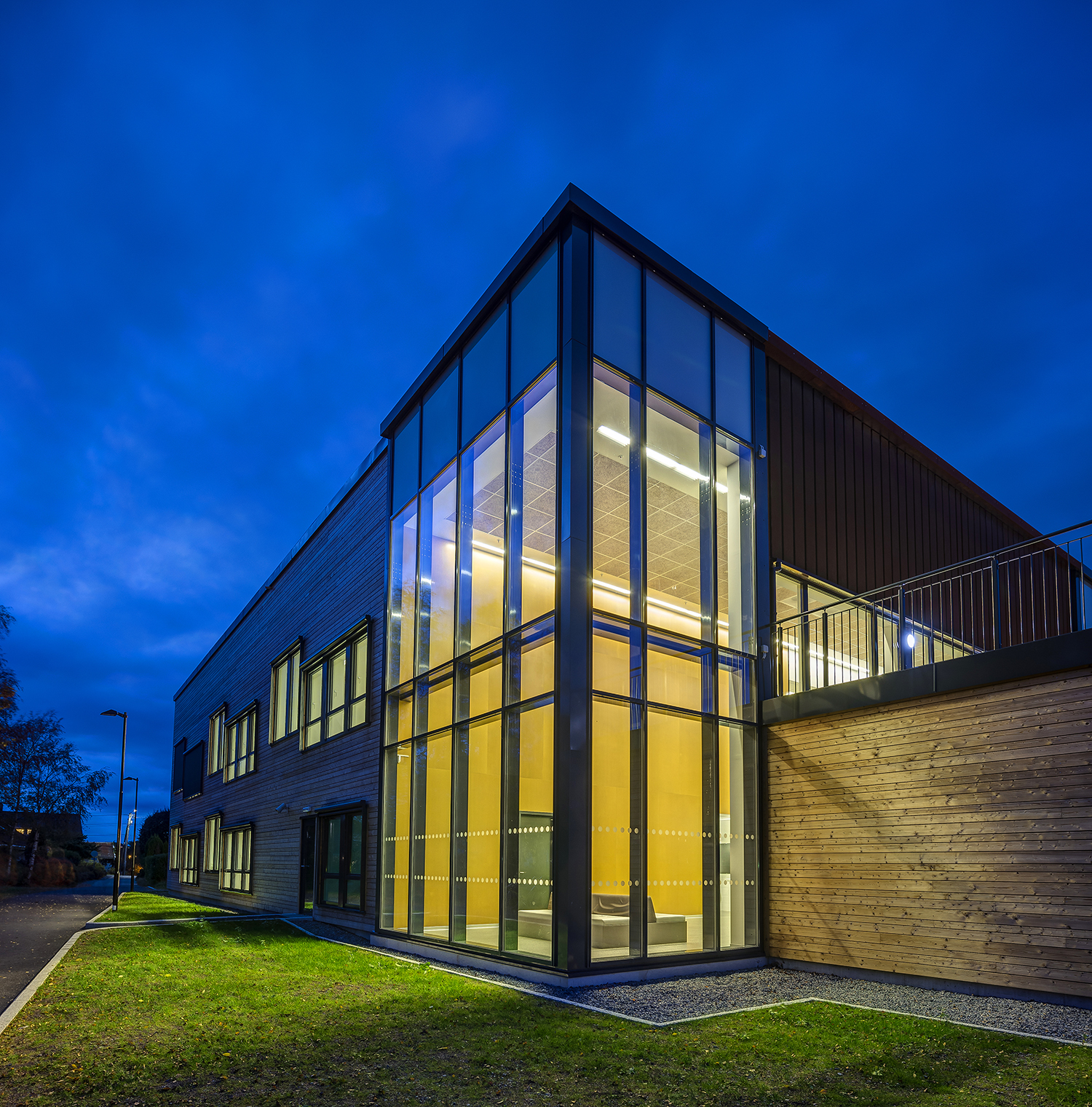

Spjelkavik School, Ålesund


Building: Spjelkavik school
Location: Ålesund, Norway
Building year: 2012-2015
Architect: Fortunen AS
Fabricator: H-Produkter AS
Developer: Ålesund Kommunale Eiendom KF

Facades: Sapa Facade 4150
Roof Glazing: Sapa Roof Glazing 5050
Doors: Sapa Door 2074
Surface treatment, colour: Powder-coating, RAL 7024

Photo: Fotograf Kristiansen AS

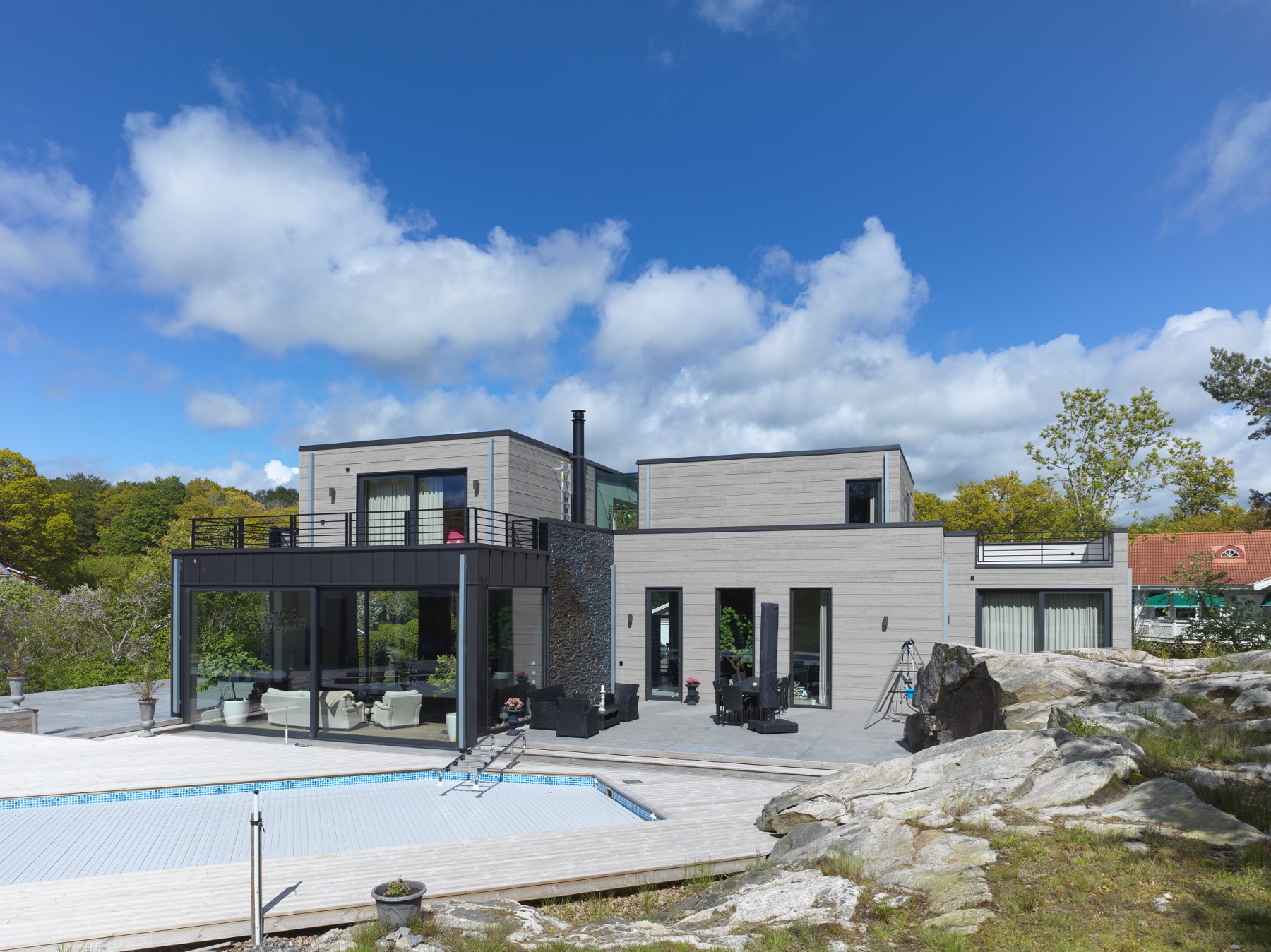

Villa, Kungsbacka


Building: Villa Agnes.
Location: Kungsbacka, Sweden.
Building year: 2013
Architect: Kanozi Arkitekter
Fabricator: Göteborgs Metallpartier AB

Facades: Sapa Facade 4150 and 4150 SSG.
Roof Glazing: Sapa Roof Glazing 5050.
Doors: Sapa Door 2074. Windows: Sapa Window 1074.
Sliding Doors: Sapa Lift-and-Sliding Door 2160
Surface treatment, colour: Powder-coating, Sable Noir 2100

Photographer: Hans Bonnevier

District Heating Power Plant, Vojen


Facility: Vojens Fjernverme
Place: Vojens, Danmark
Construction year: 2011
Architect: Tegnestuen Mejeriet A/S
Fabricator: Ejnar Christiansen Sølsted A/S
Proprietor: Jorton A/S, Rødekro

Facades: Sapa 4150
Glazed roof: Sapa 5050
Doors: Sapa 2074
Windows: Sapa 1074
Surface finish: Clear anodised

Photography: Jan Møller Madsen

Villa Jaune, Helsinki


Object and location: Villa Jaune, Helsinki
Building year: 2013
Architect: Professor Jyrki Tasa, Arkkitehdit NRT Oy
Fabricator: Imera Oy

Facades: Sapa 5050 SG
Glazing bead: vertically 42651, horizontally 42227
Doors: Sapa 2074
Windows: Sapa 1074 SX
Glazed Roof: Sapa 5050
Colour: Powder coating RAL 7011

Photographer: Jussi Tiainen
