The design of SAPA Window 1086 outward opening is based on the same principles as the SAPA Window 1086 inward oping presented above. The profiles are 86 mm deep and basically well insulated with 42 mm glass fiber reinforced polyamide. The glazing bead allows glass unit thickness of 20-56 (64) mm. This window can easily be installed into the SAPA Glazed Elements 3086.
This product is made of Hydro CIRCAL® recycled aluminum. Read more here
This product is made of Hydro REDUXA® - Aluminum produced from renewable energy. Read more here
Side - hung, outward opening
Closed
Open, side-hung
Fix closing espagnolette fittings
Sapa 16434 and 16435 handles
Sapa 16434 and 16435 handles with 16441 child safety lock
Sapa 16436 and 16437 lockable handles
Bottom - hung, outward opening
Closed
Open, bottom-hung
Fix closing espagnolette fittings
Sapa 16434 handle
Sapa 16434 handle with 16440 child safety lock
Sapa 16436 lockable handle
Top - hung, outward opening
Closed
Open, top-hung
Fix closing espagnolette fittings
Sapa 16434 handle
Sapa 16434 handle with 16440 child safety lock
Sapa 16436 lockable handle
For the entire window structure to meet the energy saving requirements and ensure good comfort it is necessary to install the window in the warm part of the wall. This means that it should be installed as deep into the wall as possible, which has a number of advantages.
It creates good conditions for appropriate fixing and a well functioning joint. The risk of condensation is reduced due to a higher surface temperature. The joint between the frame profile and the wall shall be made with two step sealing. This means that it should consist of an outer rain barrier with an underlying air channel, a mineral wool insulation layer and an inner diffusion sealing joint.

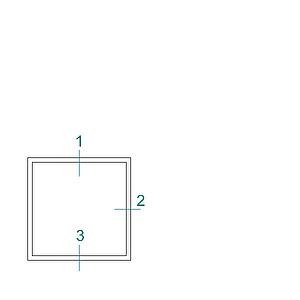

Connections, see Elevations and details.
Unprotected glazed surfaces that can be reached by persons shall be designed so as to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.
Functional dimensions
Glass thickness 20-64 mm
The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.
Windows must be fixed to a stable and suitable wall structure. The choice of fixing method depends on the wall type. The number and location of fixing points depends on the size of the window.
Exemple:
Fixing of frame with
twist anchor
Fixing of frame with
adjustable frame bushing
Fixing of frame with
bolt and welded plate
